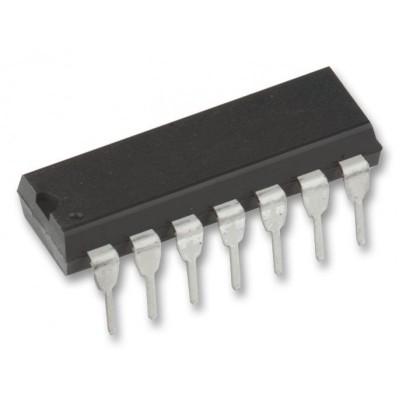

74LS54 Quad 2-Input AND/OR Inverter Gate IC (7454) DIP-14 Package
- Product Code: EPI4301
- Availability: 2120
-
Rs.32.00
- (Excluding 18% GST)
OR
74LS54 Quad 2-Input AND/OR Inverter Gate IC (7454) DIP-14 Package
Specifications :-
- Supply Voltage : 4.5 - 5.5V
- Operating Ambient Temperature Range : 70°C
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.7V
- Input Clamp Diode Voltage : -1.5V
- Output HIGH Voltage : 3.5V
- Output LOW Voltage : 0.4V
- Input HIGH Current : 20µA
- Input LOW Current : -0.4mA
- Short Circuit Current : -100mA
Package Includes :-
1 X 74LS54 Quad 2-Input AND/OR Inverter Gate IC (7454) DIP-14 Package
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 37.76 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
