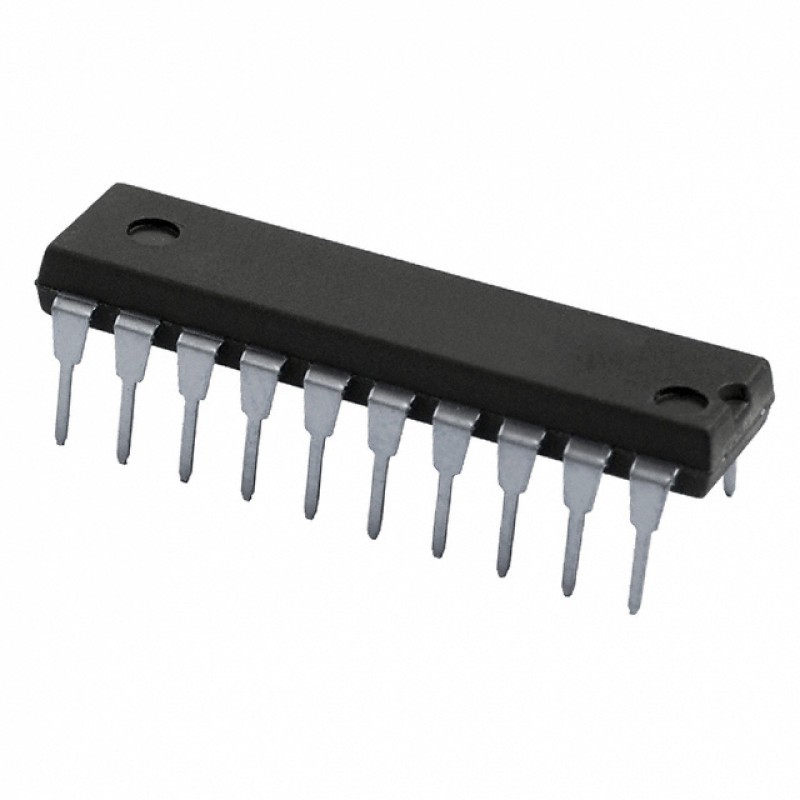

74LS240 Octal Buffers Line Drivers IC (74240) DIP-20 Package
- Product Code: EPI4246
- Availability: 2356
-
Rs.29.00
- (Excluding 18% GST)
OR
The 74LS240 are Octal Buffers and Line Drivers designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC board density. The following are the features:-
• Hysteresis at Inputs to Improve Noise Margins
• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
• Input Clamp Diodes Limit High-Speed Termination Effects
Specification:-
| Symbol | Parameter | Min | Nom | Max | Units |
| VCC | Supply Voltage | 4.5 | 5 | 5.5 | V |
| TA | Operating Ambient Temperature Range | -55 | 25 | 125 | °C |
| IOH | Output Current — High | –12 | m A | ||
| IOL | High-level Output Current | 12 | m A |
Related Document:-
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 34.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
