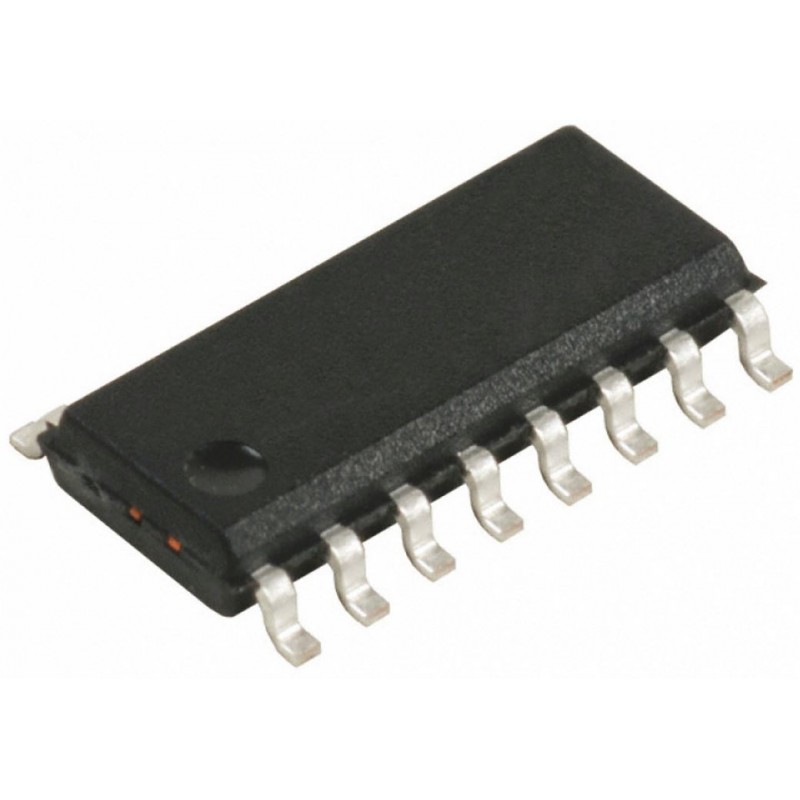

74LS175 IC - (SMD Package) Quad D Flip-Flop IC (74175 IC)

The 74LS175 is a high speed Quad D Flip-Flop. The device is useful for general flip-flop requirements where clock and clear inputs are common. The information on the D inputs is stored during the LOW to HIGH clock transition. Both true and complemented outputs of each flip-flop are provided. A Master Reset input resets all flip-flops, independent of the Clock or D inputs, when LOW. The LS175 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families.

Features :-

• Edge-Triggered D-Type Inputs
• Buffered-Positive Edge-Triggered Clock
• Clock to Output Delays of 30 ns
• Asynchronous Common Reset
• True and Complement Output
• Input Clamp Diodes Limit High Speed Termination Effects

Specifications :-

• Supply Voltage : 4.75 - 5.25V
• Input HIGH Voltage : 2.0V
• Input LOW Voltage : 0.8V
• Input Clamp Diode Voltage : -1.5V
• Output HIGH Voltage : 3.5V
• Output LOW Voltage : 0.5V
• Short Circuit Current : -100mA
• Power Supply Current : 18mA

Package Includes :-

1 X 74LS175 IC - (SMD Package) Quad D Flip-Flop IC (74175 IC)
