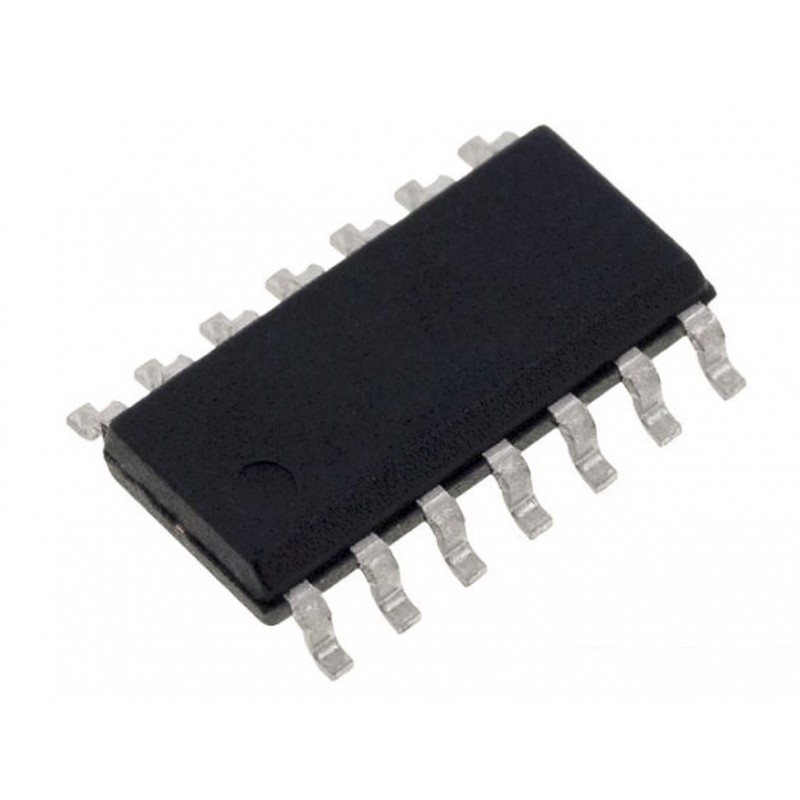

74HC32 IC - (SMD Package) - Quad 2-Input OR Gate IC (7432 IC)

The 74HC32 is a 14 Pin Quad 2-Input OR Gate SMD IC. The 74HC32 provides four independent 2-input OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V.  Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features:-

• 4 OR gates in a 14-Pin SMD Package

• Outputs Directly Interface to CMOS, NMOS and TTL

• Large Operating Voltage Range

• Wide Operating Conditions
• CMOS low power consumption
• Schmitt Trigger Action at All Inputs



Specifications:-

• Type: SMD

• Voltage Rating: 2.0 to 6.0V
• Temperature Rating: 0 to 70Deg C

• Number of: 14 Pins

• Mounting: SMD
