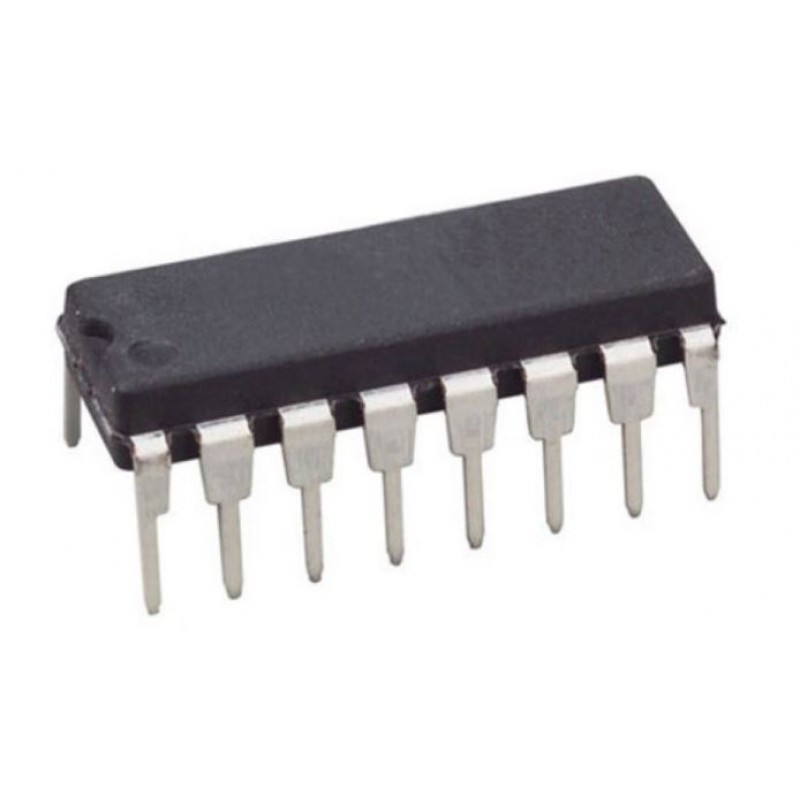

74LS258 3-State Quad 2-Input Multiplexer IC (74258) DIP-16 Package
- Product Code: EPI4257
- Availability: 2270
-
Rs.29.00
- (Excluding 18% GST)
OR
The 74LS258 are Quad 2-Input Multiplexers with 3-state outputs. Four bits of data from two sources can be selected using a Common Data Select input. The four outputs present the selected data in true (non-inverted) form. The outputs may be switched to a high impedance state with a HIGH on the common Output Enable (EO) Input, allowing the outputs to interface directly with bus oriented systems.
Features :-
- Schottky Process For High Speed
- Multiplexer Expansion By Tying Outputs Together
- Non-Inverting 3-State Outputs
- Input Clamp Diodes Limit High Speed Termination Effects
- Special Circuitry Ensures Glitch Free Multiplexing
- ESD > 3500 Volts
Specifications :-
- Supply Voltage : 4.75 - 5.25V
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.8V
- Input Clamp Diode Voltage : -1.5V
- Output HIGH Voltage : 3.1V
- Output LOW Voltage : 0.5V
- Short Circuit Current : -130mA
Package Includes :-
1 X 74LS258 3-State Quad 2-Input Multiplexer IC (74258) DIP-16 Package
