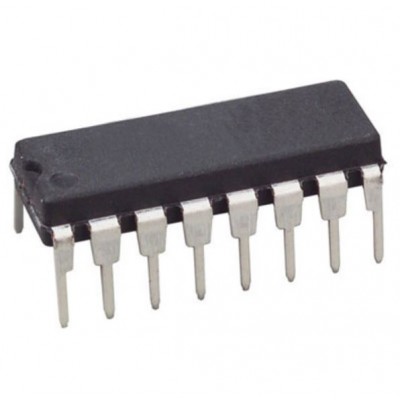

74LS123 Dual Retriggerable Monostable Multivibrator IC (74123 IC) DIP-16 Package
- Product Code: EPI4203
- Availability: 2146
-
Rs.19.00
- (Excluding 18% GST)
OR
74LS123 is a 16 Pin Dual Retriggerable Monostable Multivibrator IC having 4.75V to 5.25V Operating Voltage with output current as 8mA. It can generate output pulses from a few nano-seconds to extremely long duration up to 100% duty cycle. It contains internal timing resistors that allow the circuits to be used with only an external capacitor.
Specifications:-
- Package Type: DIP
- Multivibrator Type: Retriggerable Monostable
- Voltage Rating: 4.75 to 5.25V
- Current Rating: 8mA Output Current
- Temperature Rating: 0 to 70 Deg C
- Number of Pins: 16
- Propagation Delay: 23ns
Datasheet:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 20.06 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
