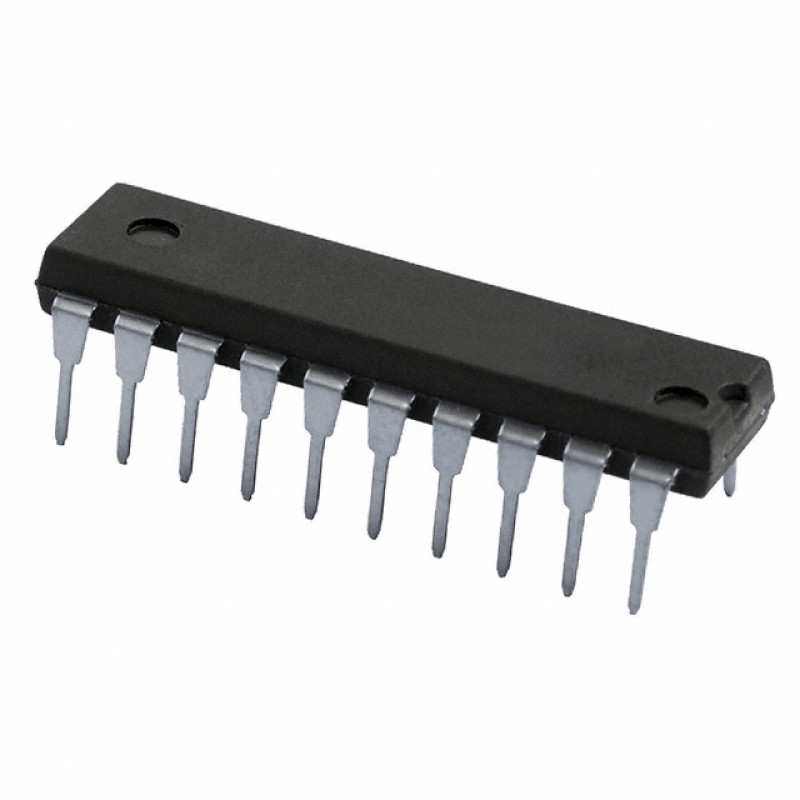

74HC374 3-State Output Octal D-Type Flip-Flop IC (74374 IC) DIP-20 Package

74HC374 is a 20 Pin 3-State output Octal D-Type Flip-Flop IC having 2V to 6V Operating Voltage range with 7.8mA output current and high noise immunity. It has the ability to  drive  15  LS-TTL  loads.  Due  to  the  large  output  drive capability and the 3-STATE feature, these devices are ideally suited for interfacing with bus lines in a bus organized system.  The eight edge-triggered flip-flops enter data into their registers on the LOW to HIGH transition of clock (CP). The output enable (OE) controls the 3-state outputs and is independent of the register operation. When OE is HIGH, the outputs are in the high-impedance state.

Specifications:-

• Package Type:            DIP
• Voltage Rating:           2 to 6V

• Current Rating:           7.8mA output current

• Temperature Rating:    -40 to 85 Deg C

• Number of Pins:          20
• Propagation Delay:      20ns
• Frequency:                 70MHz

Datasheet:-

74HC374 IC Datasheet
