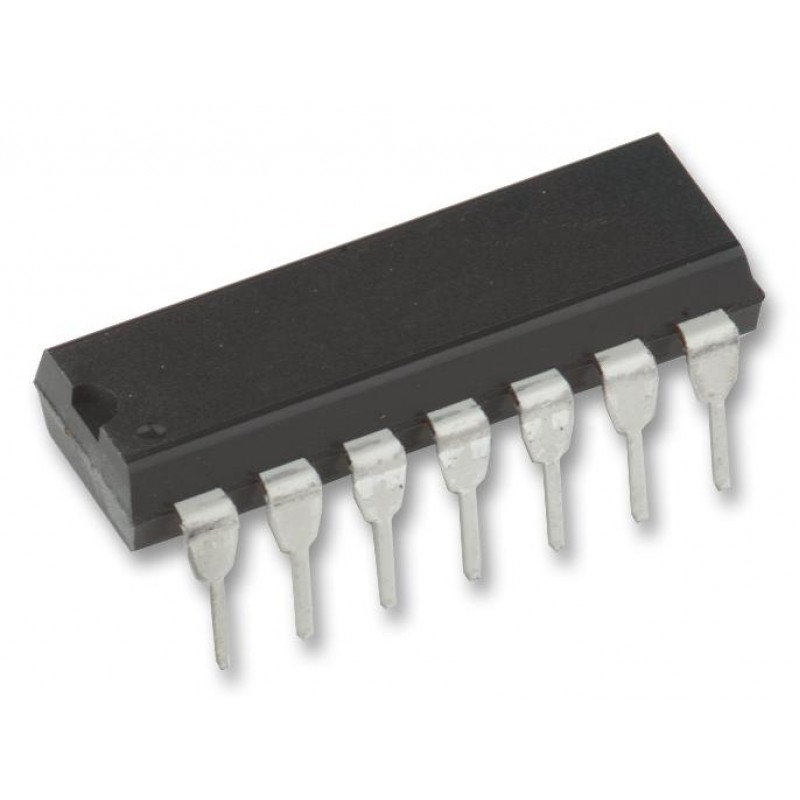

CD4073 Triple 3-Input AND Gate IC DIP-14 Package
- Product Code: EPI6653
- Availability: 2626
-
Rs.16.00
- (Excluding 18% GST)
OR
CD4073 AND gates, provide the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates.
The CD4073 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).
Features:-
- Medium-Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10 V
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V over full package-temperature range: 100 nA at 18 V and 25°C
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Specifications:-
| Parameter | Specification |
| Part number | CD4073 |
| Technology Family | CD4000 |
| VCC (Min) (V) | 3 |
| VCC (Max) (V) | 18 |
| Channels (#) | 3 |
| Inputs per channel | 3 |
| IOL (Max) (mA) | 6.8 |
| IOH (Max) (mA) | -6.8 |
| Input Type | Standard CMOS |
| Output Type | Push-Pull |
| Rating | See Data Sheet |
| Operating temperature range (C) | -55 to 125 |
| Package Group | PDIP|14 |
| Features | Standard Speed (tpd > 50ns) |
| Data rating (Max) (Mbps) | 8 |
| Package size: mm2:W x L (PKG) | 14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14) |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
