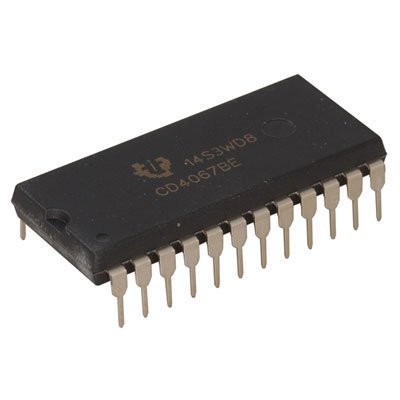

CD4067 16-Channel Analog Multiplexer/Demultiplexer IC DIP-24 Package

CD4067 CMOS analog multiplexers/demultiplexers are digitally controlled analog switches having low ON impedance, low OFF leakage current, and internal address decoding. In addition, the ON resistance is relatively constant over the full input-signal range. The CD4067 is a 16-channel multiplexer with four binary control inputs, A, B, C, D, and an inhibit input, arranged so that any combination of the inputs selects one switch.

A logic "1" present at the inhibit input turns all channels off.

The CD4067 type are supplied in 24-lead hermetic dual-in-line ceramic packages (F3A suffix), 24-lead dual-in-line plastic packages (E suffix), 24-lead small-outline packages (M, M96, and NSR suffixes), and 24-lead thin shrink small-outline packages (P and PWR suffixes).

Features:-

• Low ON resistance: 125 (typ.) over 15 V_p-p signal-input range for V_DD - V_SS = 15 V
• High OFF resistance: channel leakage of ±10 pA (typ.) @ V_DD - V_SS = 10 V
• Matched switch characteristics: R_ON = 5 (typ.) for V_DD - V_SS = 15 V
• Very low quiescent power dissipation under all digital-control input and supply conditions: 0.2 uW (typ.) @ V_DD - V_SS = 10 V
• Binary address decoding on chip
• 5-V, 10-V, and 15-V parametric ratings
• 100% tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range; 100nA at 18 V and 25°C
• Meets all requirements of JEDEC Tentative Standard No. 13A, "Standard Specifications for Description of 'B' Series CMOS Devices"
• Applications:
  • Analog and digital multiplexing and demultiplexing
  • A/D and D/A conversion
  • Signal gating

Specifications:-

Related Document:-

 CD4067 IC Datasheet
