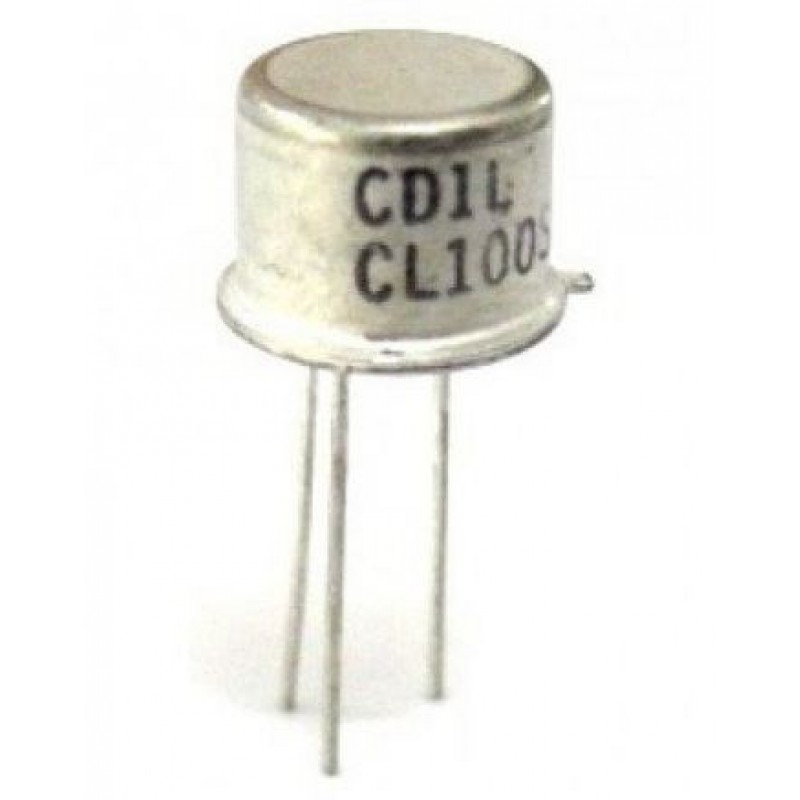

CL100 NPN Medium Power Transistor 50V 1A TO-39 Metal Package
- Product Code: EPI6835
- Availability: 1595
-
Rs.19.00
- (Excluding 18% GST)
OR
CL100 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• High Ruggedness
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Detailed Specifications:-
| Transistor Polarity | NPN |
| Collector−Emitter Voltage (VCEO) | 50V |
| Continuous Collector Current (Ic) | 1A |
| Emitter Base Voltage (VEBO) | 5V |
| Power Dissipation (Pd) | 3W |
| Operating Temperature Range | -55 - 175°C |
| DC Current Gain (hFE) | 20 |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 22.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
