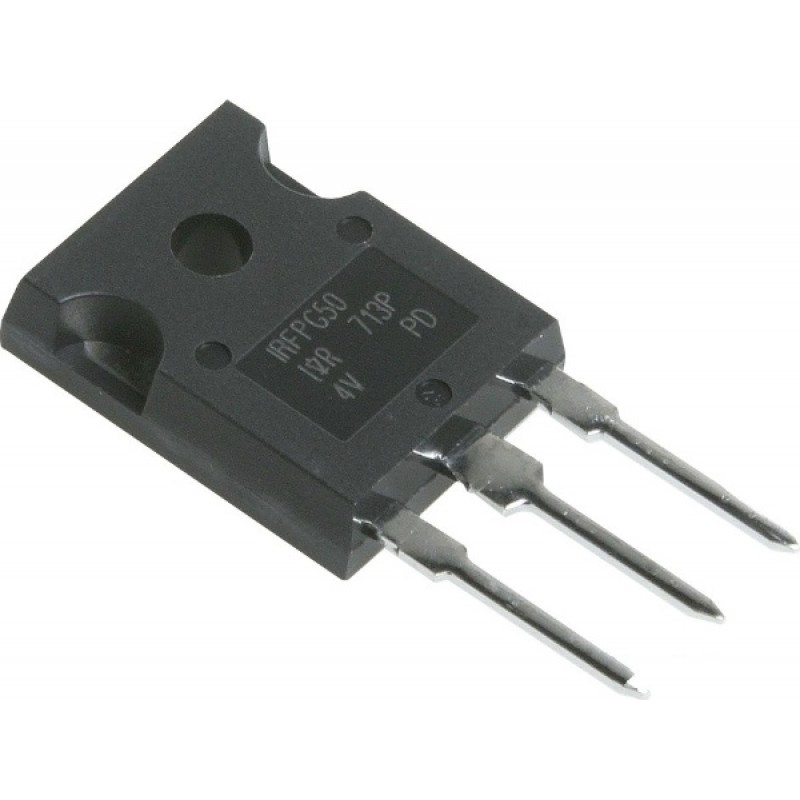

IRFPG50 MOSFET - 1000V 6.1A N-Channel Power MOSFET TO-247 Package
- Product Code: EPI10921
- Availability: 118
-
Rs.187.00
- (Excluding 18% GST)
OR
IRFPG50 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218package because of its isolated mounting hole. It also provides greater creepage distance between pins to meet the requirements of most safety specifications.
Features:-
• Dynamic dV/dt Rating
• Repetitive Avalanche Rated
• Isolated Central Mounting Hole
• Fast Switching
• Ease of Paralleling
• Simple Drive Requirements
• Compliant to RoHS Directive 2002/95/EC
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 1000V |
| Continuous Drain Current (Id) | 6.1A |
| Drain-Source Resistance (Rds On) | 2Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 190 nC |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 190W |
Related Documents
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 220.66 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
