DB107 1 Amp Bridge Rectifier

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

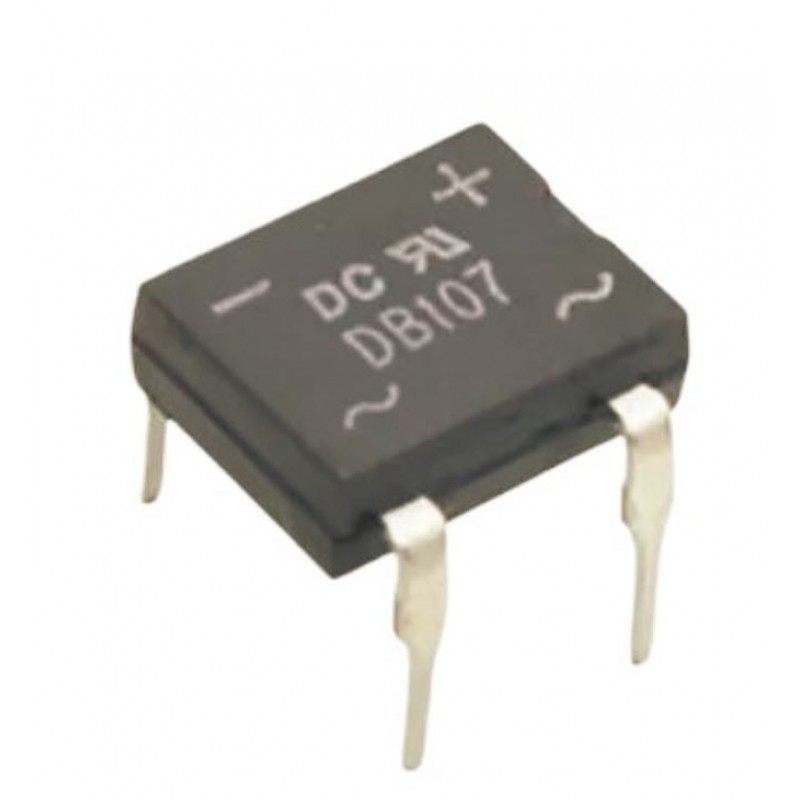

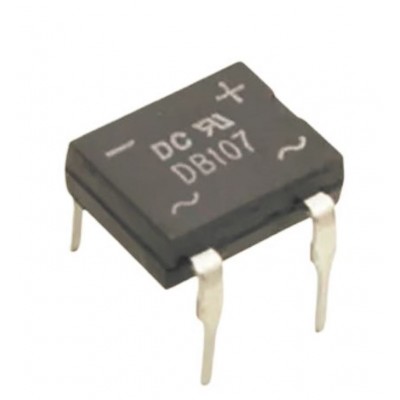

The DB107 is a single phase 1.0 Amp Glass Passivated Bridge Rectifier Case: DB-M, Molded plastic.

Mechanical Data:-

• Terminals: Plated leads solderable per MIL-STD-202, Method 208

• Polarity: as marked on case

• Mounting Position: Any

• Marking: Type Number

• Lead Free: For RoHS / Lead Free Version

Features:-

• Glass passivated die construction

• Low forward voltage drop

• High current capability

• High surge current capability

• Plastic material-UL flammability 94V-0

• This is a Pb − Free Device

• “-HF” suffix is for Halogen Free Device

• All SMC parts are traceable to the wafer lot

• Additional testing can be offered upon request

Specification:-

Symbol	Parameter	Value	Units
VRRM	Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	1000	V
VRWM
VR
VRMS	RMS Reverse Voltage	700	V
IF(AV)	Average Forward Output Current (Note 1) @ TC =100°C	1	A
IFSM	Non-Repetitive Peak Forward Surge Current 8.3ms	45	A
IFSM	Single half sine-wave superimposed on rated load	45	A
I2 t	I2t Rating for Fusing (t < 8.3ms)	8.404	A 2s

Related Document:-

DB107 Rectifier Data Sheet


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP	Rs. 7.67 (Inclusive of all Taxes)
