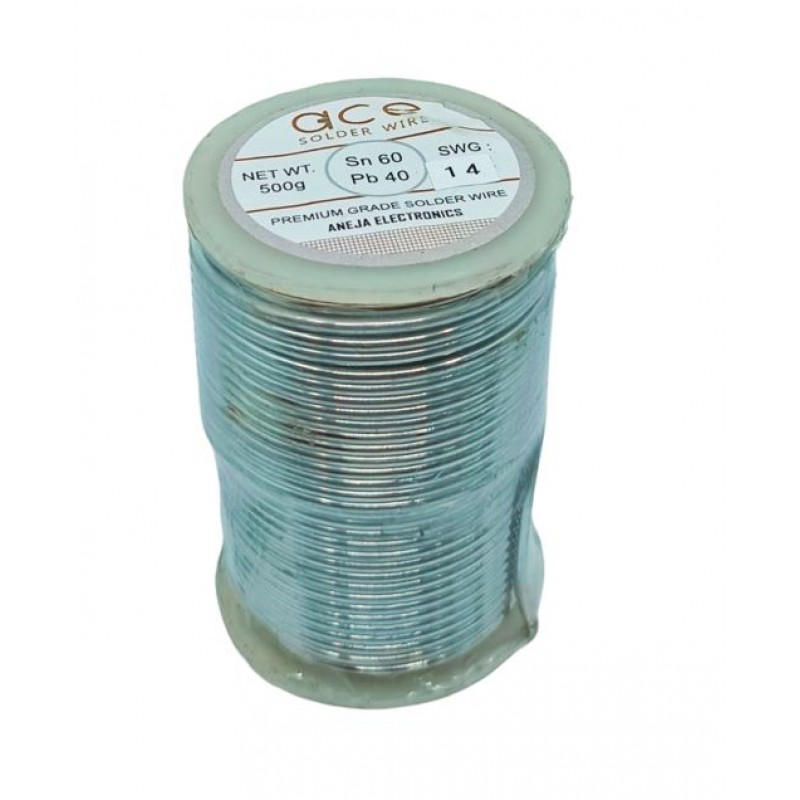

ACE 500gm 14 Gauge (Premium) 60/40 Grade Solder Wire

ACE 500gm 14 Gauge (Premium) 60/40 Grade Solder Wire best suited for work requiring low melting points or free running solder, eg electrical, electronic, radio and instrument assemblies. Produces joints with excellent shine and minimal residue.

Shelf Life : Indefinite at room temperature.

Process Considerations : Solder iron tip temperatures should be maintained between 315-343°C (600-650°F).Heat both the land area and component lead to be soldered with the iron prior to touching the land with the cored wire. Do not  apply the wire directly to the soldering iron tip.

Cleaning : The flux residues are non-corrosive, non-conductive and do not require removal in most applications. In case cleaning is essential, the residues may be cleaned using IPA.

Storage : Storage must be in a dry, non-corrosive environment between 10-40°C (50-104°F).The surface may lose its shine and appear a dull shade of grey. This is a surface phenomenon and is not detrimental to product functionality.

Features:

• Low melting point solder wire.
• Low smoke and odour.
• Low spattering.
• Eliminates the need and expense of cleaning.
• Good wetting on most common surfaces.
• Leaves bright/shiny solder joints.
• Non corrosive clear residues.
• Soft solder i.e. cracks do not form if the joint moves during cooling.

Specifications:

• Composition   - 60% Tin
•                        40% Lead
• Melting Range - 183-190°C (361-374°F)
• Density           - 8.60 g/cm3@190°C
• Net Weight      - 500g
• SWG               - 14

Package Includes :

1 x ACE 500gm 14 Gauge (Premium) 60/40 Grade Solder Wire
