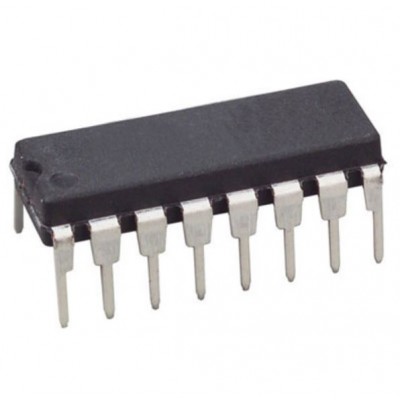

74LS76 Dual JK Flip-Flop with Set and Clear IC - Hitachi (7476 IC) DIP-16 Package
- Product Code: EPI4318
- Availability: 2088
-
Rs.165.00
- (Excluding 18% GST)
OR
The 74LS76 offers individual J, K, Clock Pulse, Direct Set and Direct Clear inputs. These dual flip-flops are designed so that when the clock goes HIGH, the inputs are enabled and data will be accepted. The Logic Level of the J and K inputs will perform according to the Truth Table as long as minimum set-up times are observed. Input data is transferred to the outputs on the HIGH-to-LOW clock transitions.
Features:-
• Two Individual Flip-Flops with J,K Clock, Set and Clear Inputs
• Input Data is Transferred to the Outputs on HIGH-LOW Clock Transition
• Fast Switching Speed
• Operating Temperature up to 70°C
• Standard TTL Switching Voltages
Specifications:-
| Symbol | Parameter | Min | Type | Max | Unit |
| VCC | Supply Voltage | 4.75 | 5 | 5.25 | V |
| TA | Operation free-air temperature | 0 | 25 | 70 | °C |
| IOH | Output Current — High | -0.4 | mA | ||
| IOL | Output Current — Low | 8 | mA |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 224.2 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
