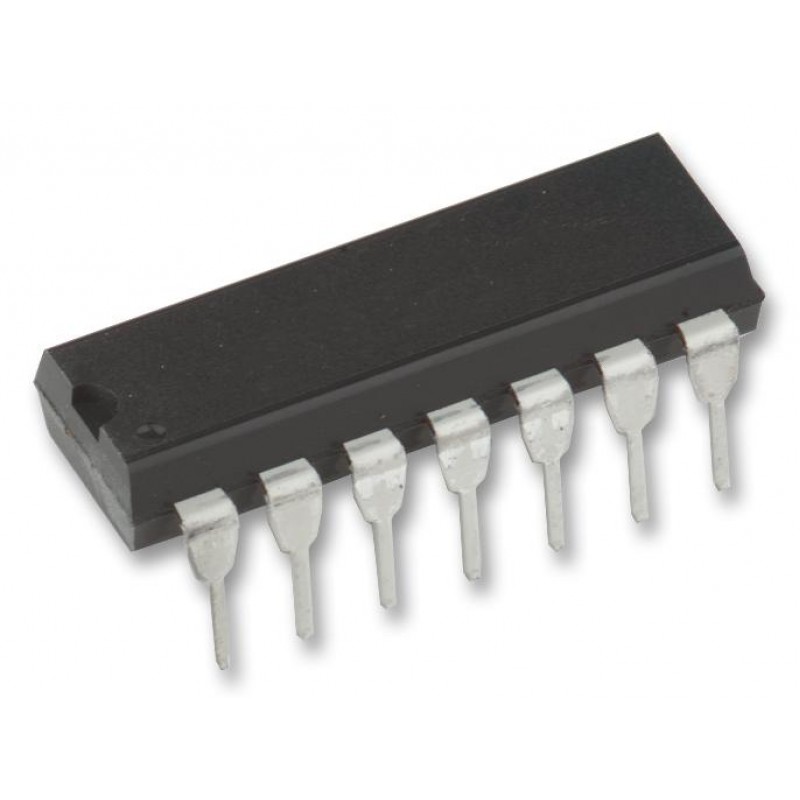

74LS27 Triple 3-input NOR Gate IC (7427 IC) DIP-14 Package
- Product Code: EPI4262
- Availability: 1985
-
Rs.14.00
- (Excluding 18% GST)
OR
The 74LS27 contains three independent 3-input AND gates. The 74LS27 is characterized for operation from 0 °C to 70 °C. The 74LS27 features is package Options include Plastic "small outline" packages, ceramic chips carriers and flat packages and plastic and ceramic DIPs.
Specifications:-
| Symbol | Parameter | Min | Type | Max | Unit |
| VCC | Supply Voltage | 4.75 | 5 | 5.25 | V |
| VIH | High Level Input Voltage | 2 | V | ||
| VIL | Low Level Input Voltage | 0.8 | V | ||
| IOH | High Level Output Voltage | -0.4 | m A | ||
| IOL | Low Level Output Voltage | 8 | m A | ||
| TA | Operating Free Air Temperature | 0 | 70 | °C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 16.52 (Inclusive of all Taxes) |
