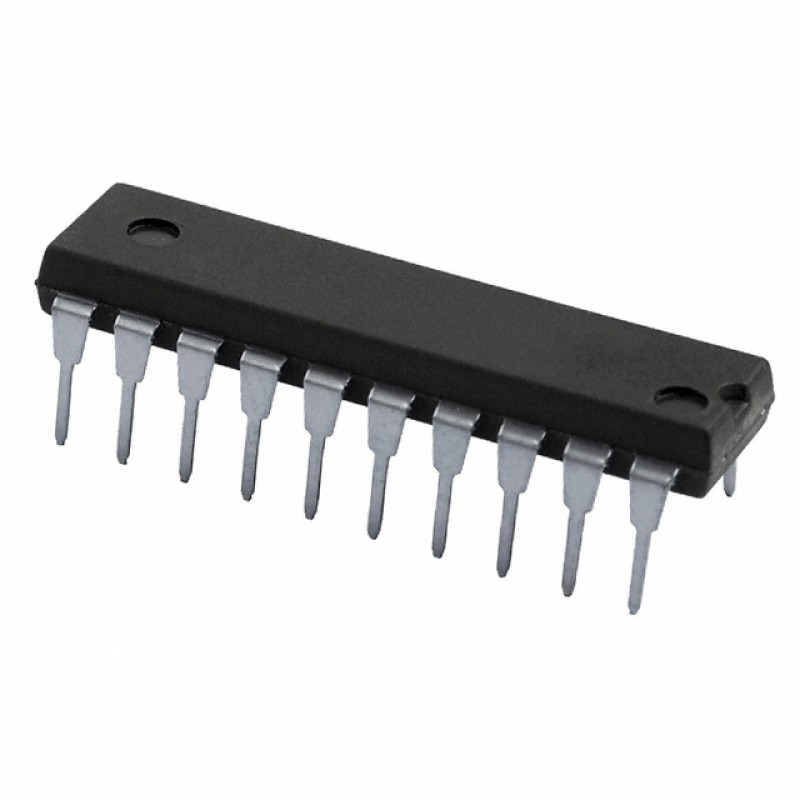

74LS245 3-State Octal Bus Transceiver IC (74245 IC) DIP-20 Package
- Product Code: EPI4252
- Availability: 1829
-
Rs.35.00
- (Excluding 18% GST)
OR
The 74LS245 octal bus transceivers are designed for asynchronous two-way communication between data buses. The control function implementation minimizes external timing requirements. The device allows data transmission from the A Bus to the B Bus or from the B Bus to the A Bus depending upon the logic level at the direction control (DIR) input. The enable input (G) can be used to disable the device so that the buses are effectively isolated.
Features:-
• Bi-Directional bus transceiver in a high-density 20-pin package
• 3-STATE outputs drive bus lines directly
• PNP inputs reduce DC loading on bus lines
• Hysteresis at bus inputs improve noise margins
• Typical propagation delay times, port-to-port 8 ns
• Typical enable/disable times 17 ns
• IOL (sink current) 24 mA
• IOH (source current) −15 mA
Specifications:-
| Parameter | Specification |
| Supply Voltage (VCC) | 7 V |
| Input Voltage (VI) | 7 V |
| Operating free-air temperature range | 0°C to +70°C |
| Storage temperature range | –65°C to +150°C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 44.84 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
