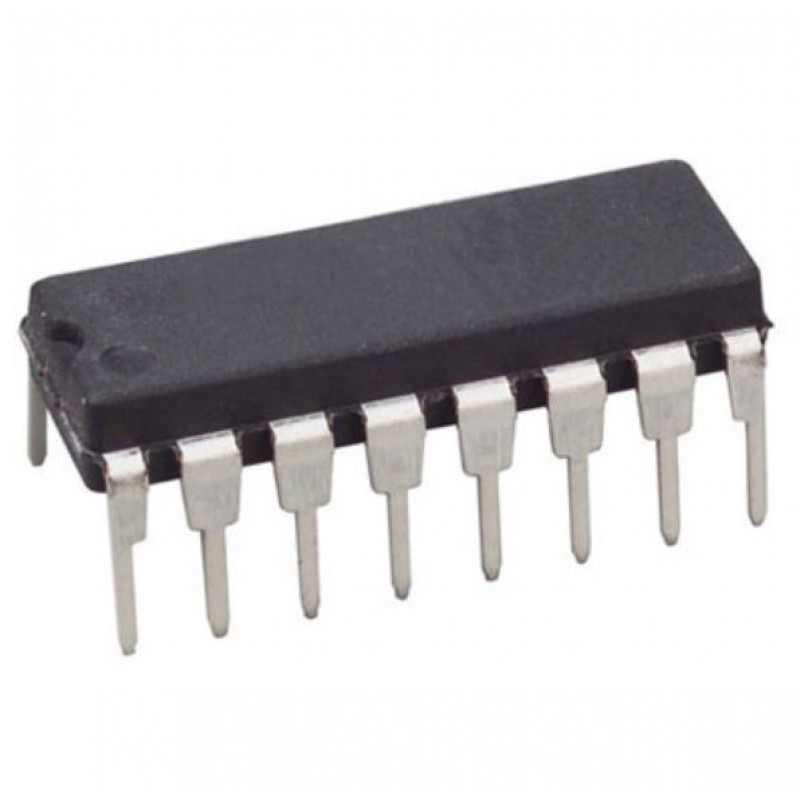

74LS147 Decimal to BCD Priority Encoder IC (74147 IC) DIP-16 Package
- Product Code: EPI4216
- Availability: 2032
-
Rs.37.00
- (Excluding 18% GST)
OR
The 74LS147 TTL encoders feature priority decoding of the inputs to ensure that only the highest-order data line is encoded. The ’147 and ’LS147 devices encode nine data lines to four-line (8-4-2-1) BCD. The implied decimal zero condition requires no input condition, as zero is encoded when all nine data lines are at a high logic level. Cascading circuitry (enable input EI and enable output EO) has been provided to allow octal expansion without the need for external circuitry. For all types, data inputs and outputs are active at the low logic level.
Specifications:-
| Symbol | Parameter | Min | Type | Max | Unit |
| VCC | Supply Voltage | 4.75 | 5 | 5.25 | V |
| TA | Operation free-air temperature | -400 | °C | ||
| IOH | Output Current — High | 8 | mA | ||
| IOL | Output Current — Low | 0 | 70 | µA |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 62.54 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
