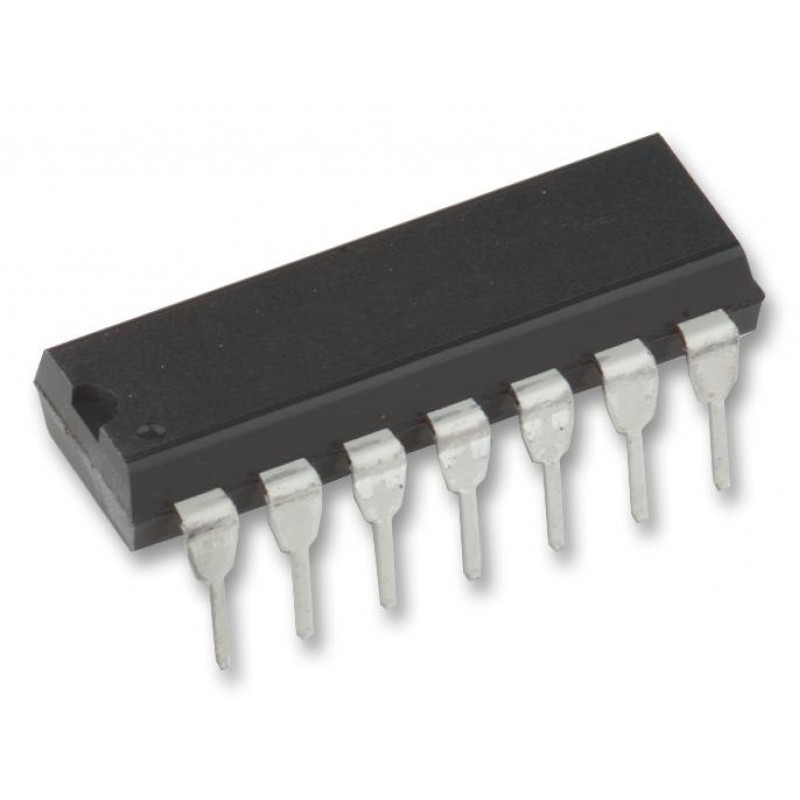

74LS132 Quad 2-Input Schmitt Trigger IC (74132 IC) DIP-14 Package
- Product Code: EPI4210
- Availability: 2293
-
Rs.29.00
- (Excluding 18% GST)
OR
The 74LS132 contains four independent gates each of which performs the logic NAND function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output.
Features:-
• Four Independent NAND Gates
• Each Input has Hysteresis for Noise Immunity
• Jitter Free Output
• Operating Temperature up to 70°C
• Standard TTL Switching Voltages
Specifications:-
| Parameter | Specification |
| Supply Voltage (VCC) | 7 V |
| Input Voltage (VI) | 7 V |
| Operating free-air temperature range | 0°C to +70°C |
| Storage temperature range | –65°C to +150°C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
