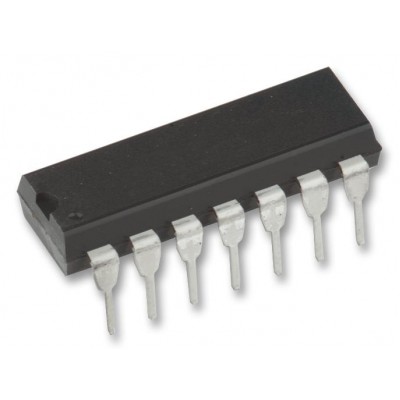

74LS02 Quad 2-Input NOR Gate IC (7402 IC) DIP-14 Package
- Product Code: EPI4184
- Availability: 814
-
Rs.16.00
- (Excluding 18% GST)
OR
The 74LS02 is a 14 Pin Quad 2-Input NOR Gate IC. NOR gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to HC gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family.
All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Features:-
- Four Independent NOR Gates
- 14 Pin IC
- Operating Temperature to 70 Deg C
- High-Speed CMOS Type
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 18.88 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
