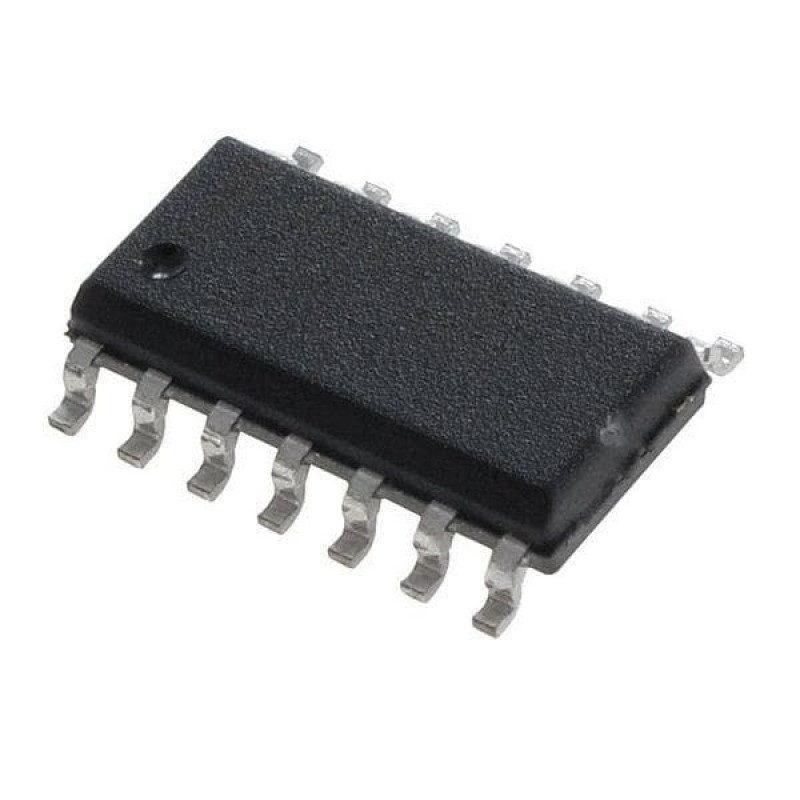

74LS379 IC - (SMD Package) - Octal D Flip-Flop IC (74379 IC)

The 74LS379 is a 4-Bit Register with buffered common Enable. This device is similar to the 74LS175 but features the common Enable rather then common Master Reset.

Features :-

• 8-Bit High Speed Parallel Registers
• Positive Edge-Triggered D-Type Flip Flops
• Fully Buffered Common Clock and Enable Inputs
• True and Complement Outputs
• Input Clamp Diodes Limit High Speed Termination Effects

Specifications :-

• Supply Voltage : 4.75 - 5.25V
• Input HIGH Voltage : 2.0V
• Input LOW Voltage : 0.8V
• Input Clamp Diode Voltage : -1.5V
• Output HIGH Voltage : 3.5V
• Output LOW Voltage : 0.5V

Package Includes :-

1 X 74LS379 IC - (SMD Package) - Octal D Flip-Flop IC (74379 IC)
