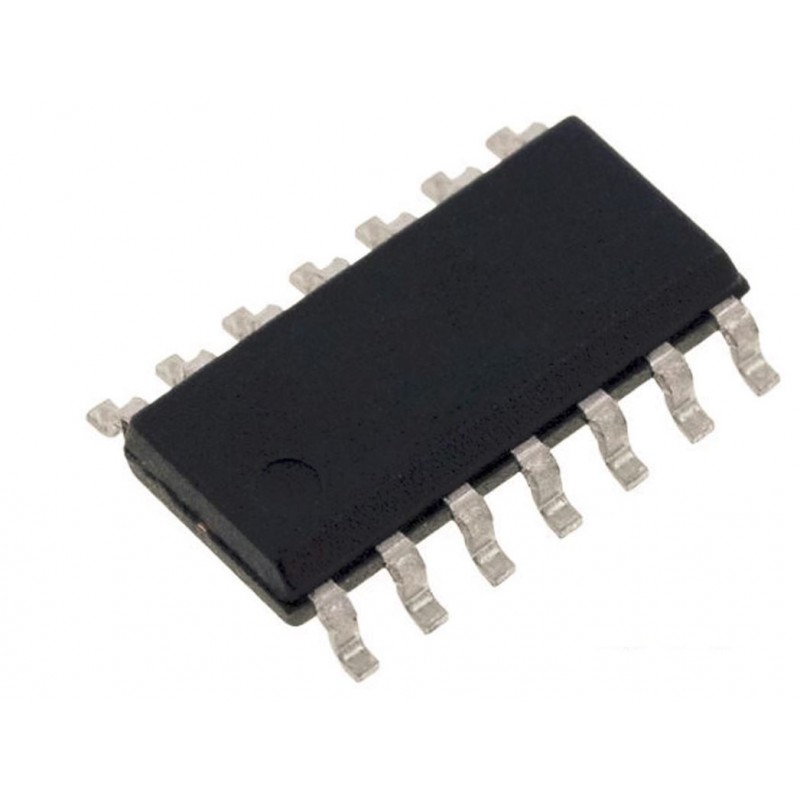

74LS37 IC - (SMD Package) Quadruple 2-Input Positive NAND Buffers IC (7437 IC)

  • Product Code: EPI4287
  • Availability: 1
  • Rs.25.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

These 8-bit registers feature totem-pole TRI-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. The high-impedance state and increased high-logic level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pull-up components. They are particularly attractive for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.


Applications :-

  • Burglar alarm or theft alarm
  • Freezer warning buzzer
  • Light activated theft alarm
  • Automatic watering system


Specifications :-

  • Quadruple 2-Input Positive-NAND Buffer
  • High-level input voltage: 2V
  • Low-level input voltage: 0.8V
  • High-level output current: -1.2mA
  • Low-level output current: 24mA
  • Input clamp voltage: -1.5V
  • No. of gates: 4
  • No. of inputs: 8
  • No. of outputs: 4
  • Propagation delay time: 24ns
  • Supply voltage range: 4.75 to 5.25V


Package Includes :-

1 X 74LS37 IC - (SMD Package) Quadruple 2-Input Positive NAND Buffers IC (7437 IC)

Brand/Manufacturer
Country Of Origin
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP Rs. 29.5 (Inclusive of all Taxes)
