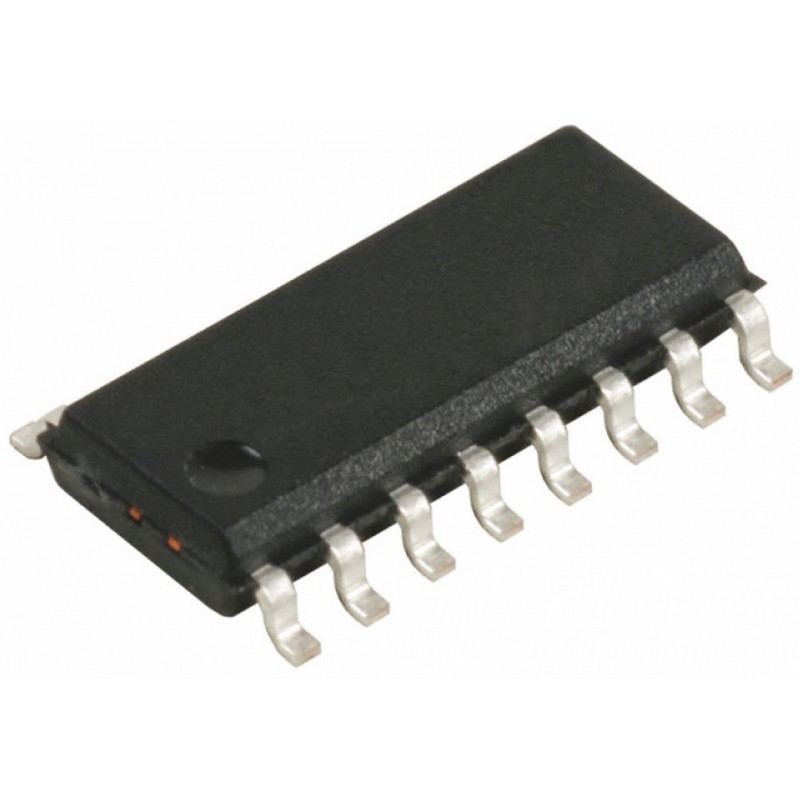

74LS365 IC - (SMD Package) 3-State Hex Buffers IC (74365 IC)

This device contains six independent gates each of which performs a non-inverting buffer function. The outputs have the 3-STATE feature. When enabled, the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines without external resistors. When disabled, both the output transistors are turned OFF presenting a high-impedance state to the bus line. Thus the output will act neither as a significant load nor as a driver. To minimize the possibility that two outputs will attempt to take a common bus to opposite logic levels, the disable time is shorter than the enable time of the outputs.

Specifications :-

• Supply Voltage : 4.75 - 5.25V
• Input HIGH Voltage : 2.0V
• Input LOW Voltage : 0.8V
• High Level Output Current : -2.6mA
• Low Level Output Current : 24mA
• Free Air Operating Temperature : 70°C

Package Includes :-

1 X 74LS365 IC - (SMD Package) 3-State Hex Buffers IC (74365 IC)
