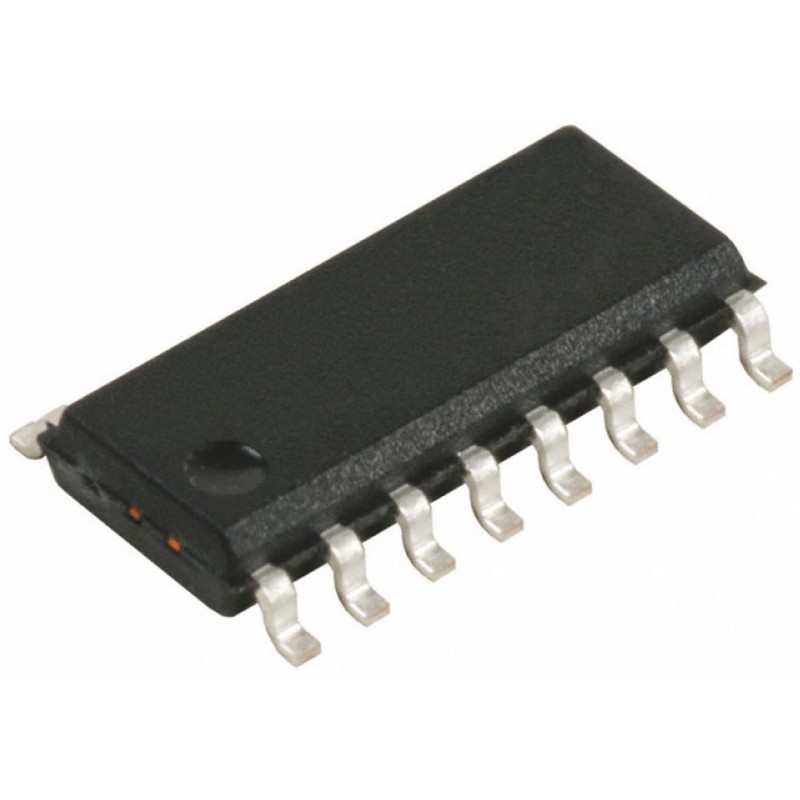

74LS352 IC - (SMD Package) Dual 4-input Multiplexer IC (74352 IC)

Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections

Features :-

• Inverting version of DM54/74LS153
• Permits multiplexing from N lines to 1 line
• Performs parallel-to-serial conversion
• Strobe (enable) line provided for cascading (N lines to n lines)
• High fan-out, low-impedance, totem-pole outputs
• Typical power dissipation 31mW

Specifications :-

• Supply Voltage : 4.75 - 5.25V
• Input HIGH Voltage : 2.0V
• Input LOW Voltage : 0.8V
• High Level Output Current : -0.4mA
• Low Level Output Current : 8mA
• Free Air Operating Temperature : 70°C

Package Includes :-

1 X 74LS352 IC - (SMD Package) Dual 4-input Multiplexer IC (74352 IC)
