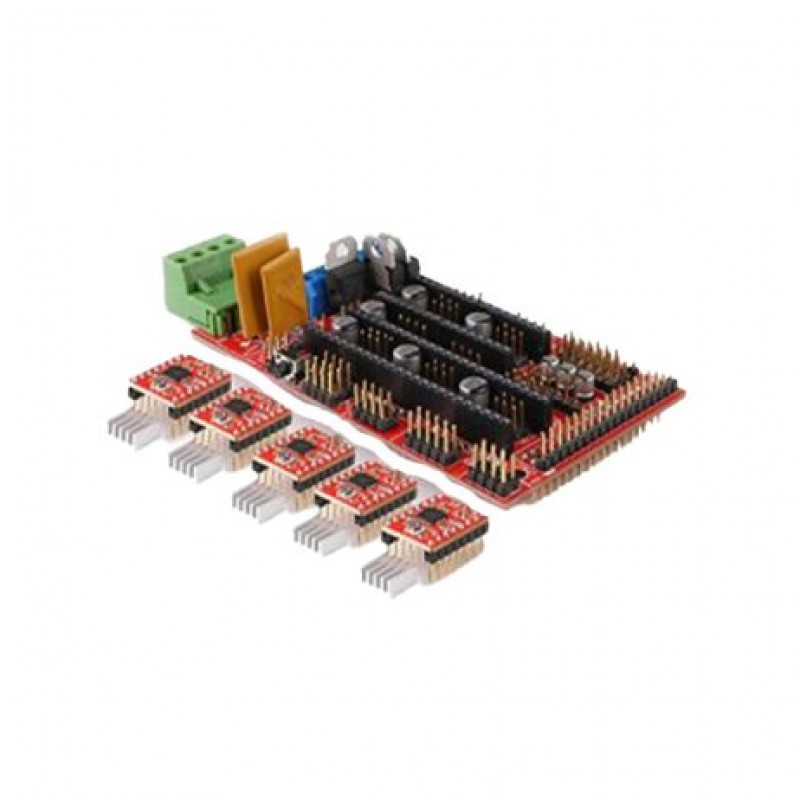

RAMPS 1.4 3D PRINTER CONTROLLER+5Pcs 4988 Driver With Heat Sink Kit
- Product Code: EPI29012
- Availability: 36
-
Rs.844.00
- (Excluding 18% GST)
OR
RAMPS 1.4 3D PRINTER CONTROLLER + 5Pcs 4988 Driver With Heat Sink Kit
RAMPS 1.4 3D PRINTER CONTROLLER+5Pcs 4988 Driver With Heat Sink Kit is the new Robu.in 3D Printer Kit, developed especially for those who are interested in 3D printers. Robu. in

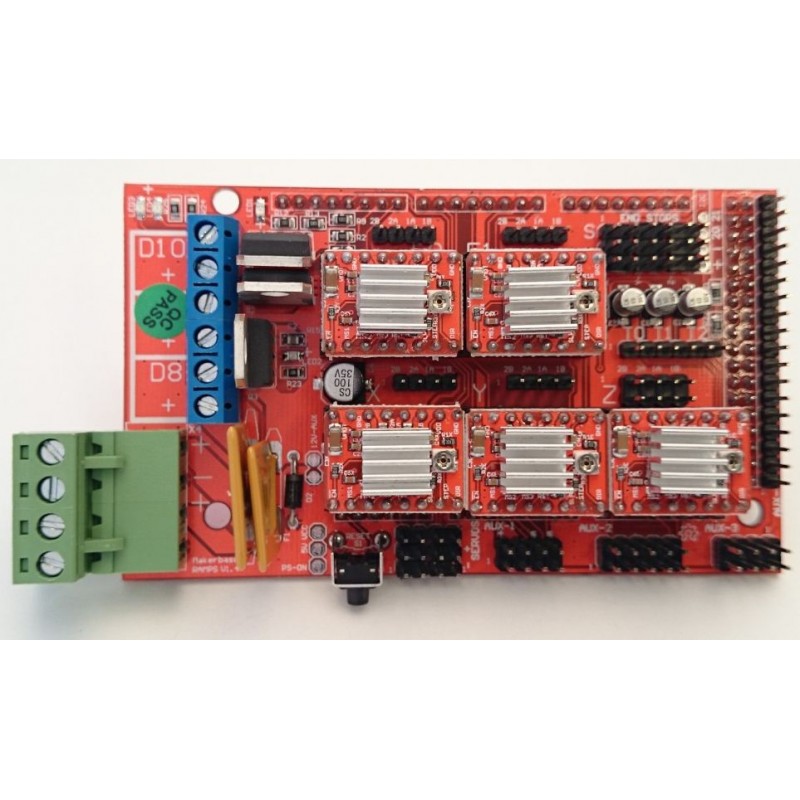

RAMPS 1.4 Board :
The RAMPS 1.4 is Mega Pololu Shield or RAMPS. Design to fit the entire electronics needs for a RepRap in one small package for a low cost. RAMPS interfaces a Mega with the powerful Arduino MEGA platform and has plenty of room for expansion. The modular design includes plug-in stepper drivers and extruder control electronics on Arduino MEGA shield for easy service, part replacement, upgrade-ability, and expansion. Additionally, a number of Arduino expansion boards can be added to the system. As long as the main RAMPS board is kept to the top of the stack.

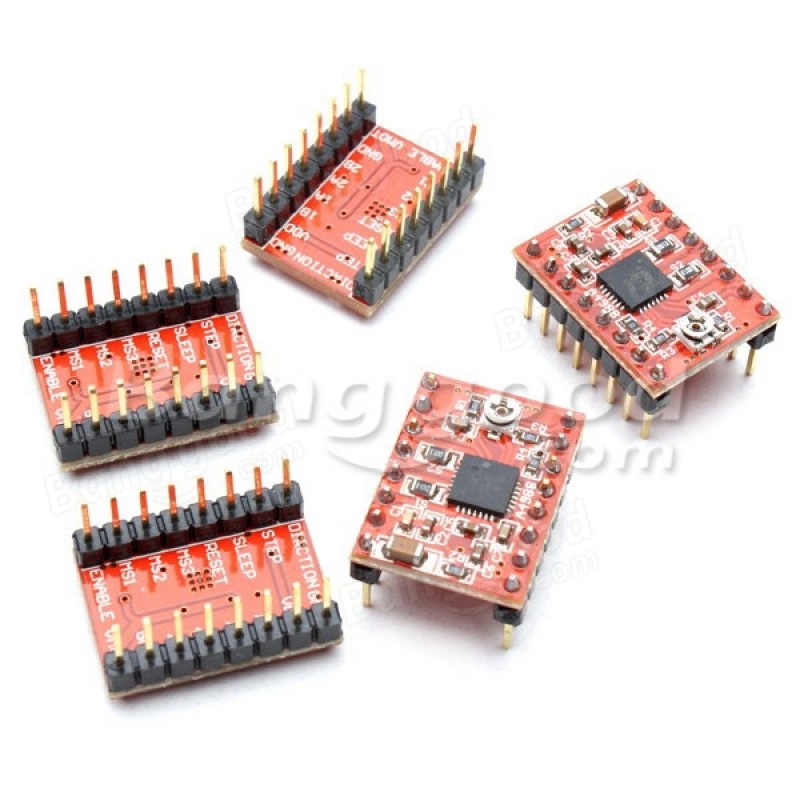

Driver A4988 :
A4988 driver is a carrier board or breakout board for the A4988 DMOS Micro-stepping Driver with Translator and Over-current protection by Pololu. we therefore recommend careful reading of the A4988 datasheet before using a product. This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil.
We also have a variety of 3D Printers and accessories from the Brand CREALITY at the best price in INDIA,
Click Here to explore.
Features :
- USB type B receptacle.
- SD Card add-on is available.
- Fits 5 Pololu stepper driver board.
- LEDs indicate when the heater outputs.
- Expandable to control other accessories.
- Heated bed control with an additional 11A fuse.
Package Includes :
5 x A4988 driver with heat sink.
Specifications
- USB type B receptacle.
- SD Card add-on is available.
- Fits 5 Pololu stepper driver board.
- LEDs indicate when the heater outputs.
- Expandable to control other accessories.
- Heated bed control with an additional 11A fuse.
- Option to connect 2 motors to Z for Prusa Mendel.
- I2C and SPI pins are left available for future expansion.
- It has provisions for the cartesian robot and extruder.
- All the Mosfets are hooked into PWM pins for versatility.
- 3 MOSFETs for heater/fan outputs and 3 thermistor circuits.
- Fused at 5A for additional safety and component protection.
- These boards are on pin header sockets so they can be replaced easily or removed for use in future designs.
- Servo-style connectors are used to connect to the end stops, motors, and LED. These connectors are gold plated, rated for 3A, very compact, and globally available.
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
