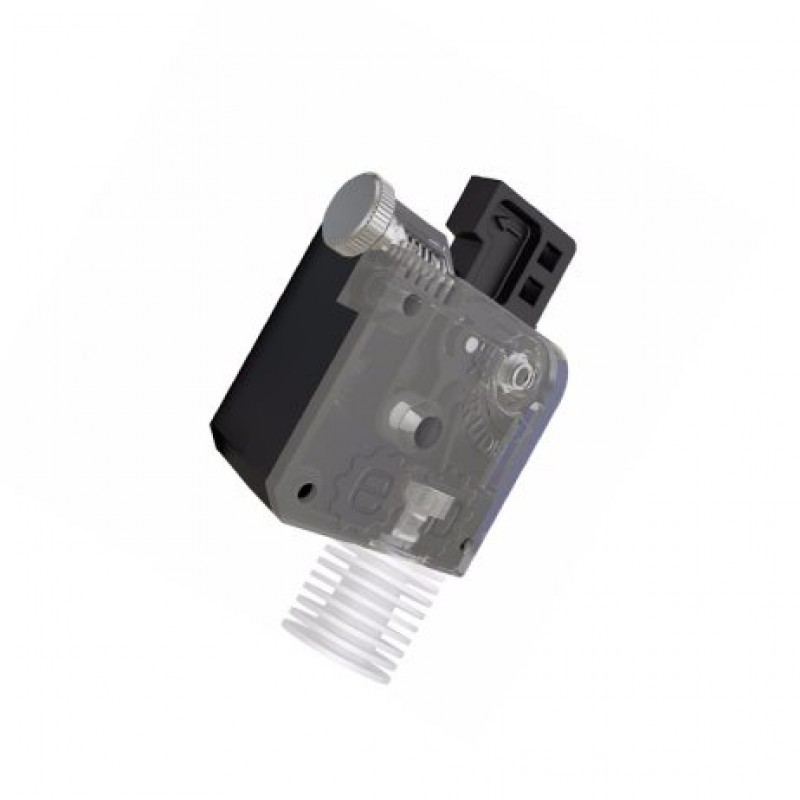

E3D Titan Extruder 1.75mm with Bowden Adapter

Performance:

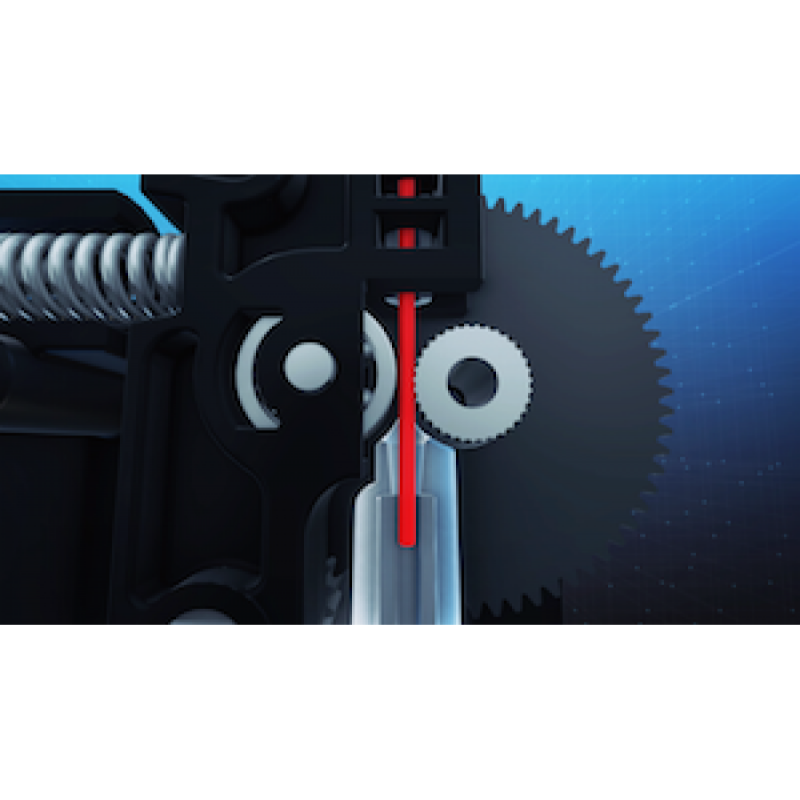

With 3:1 gear reduction, precision milled hobbed gearing and E3D engineering, weve developed Titan to push with awesome power, while also being incredibly light and compact.

Power:

The gear ratio means youre able to use lighter motors as youll need less torque for the same filament pushing force so direct drive systems have a lighter moving carriage, and Bowden-style printers become powerful, reliable little beasts when combined with your E3D V6 HotEnd.

Push

Titan fits perfectly into E3Ds modular ecosystem, Titan works for all configurations of Bowden, direct extrusion, 1.75mm and 3mm. To switch filament diameters only the filament guide needs to be swapped out, and both 3mm and 1.75mm versions are supplied with every Titan. To use Titan as a Bowden extruder you just insert a Bowden adaptor into the body instead of a HotEnd. Bowden adaptors for 3mm or 1.75mm are available as a low-cost optional extra.

Speed

Extruders with high gear ratios often struggle with snappy retracts and keeping up with Volcano for big, fast printing. Titans balanced gearing ratio of 3:1 means that you can cope with fast extrusion situations like Volcano, and the lightweight gear-set gives snappy retractions.

Resolution:

Direct-drive extruders can have issues with pulsing of flow because the lower resolution of filament motion results in filament being extruded in pulses. This results in a slightly wavy surface finish and is particularly prevalent when printing at low layer heights. Using 3:1 gearing triples the resolution of the system and allows for smooth printing at the lowest of layer heights, using the smallest of nozzles.

We also have a variety of 3D Printers and accessories from the Brand CREALITY at the best price in INDIA,

Click Here to explore.

Package Includes:

1 xE3D Titan Extruder 1.75mm with Bowden Adapter
