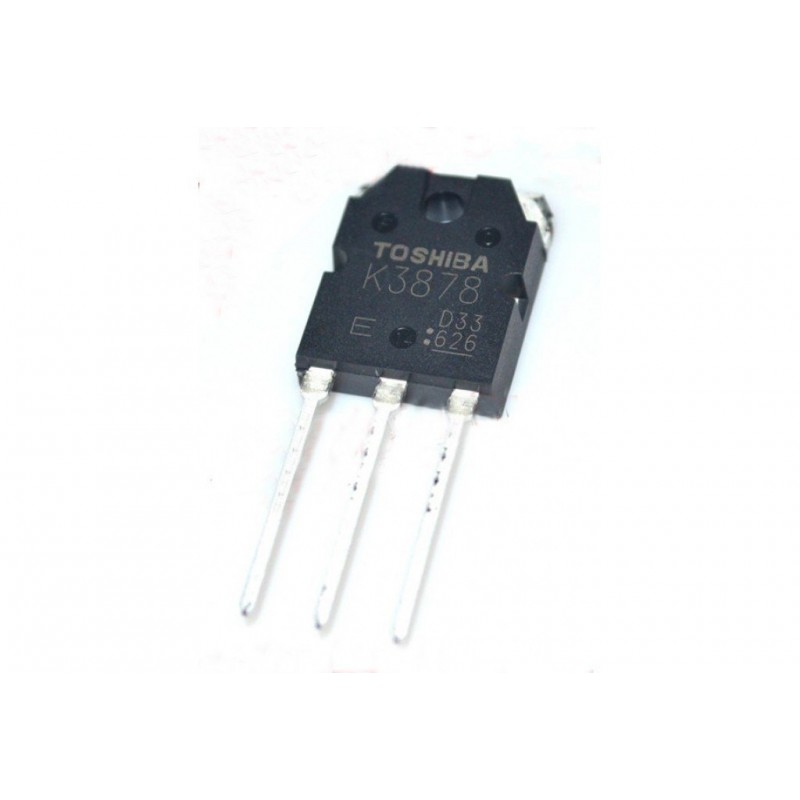

2SK3878 MOSFET - 900V 9A N-Channel Power MOSFET TO-3P Package
- Product Code: EPI2374
- Availability: 2092
-
Rs.134.00
- (Excluding 18% GST)
OR
2SK3878 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
• Low drain−source ON resistance
• High forward transfer admittance
• Low leakage current
• Enhancement mode
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 900V |
| Continuous Drain Current (Id) | 9A |
| Drain-Source Resistance (Rds On) | 1Ohms |
| Gate-Source Voltage (Vgs) | 30V |
| Gate Charge (Qg) | 60 nC |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 150W |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 158.12 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
