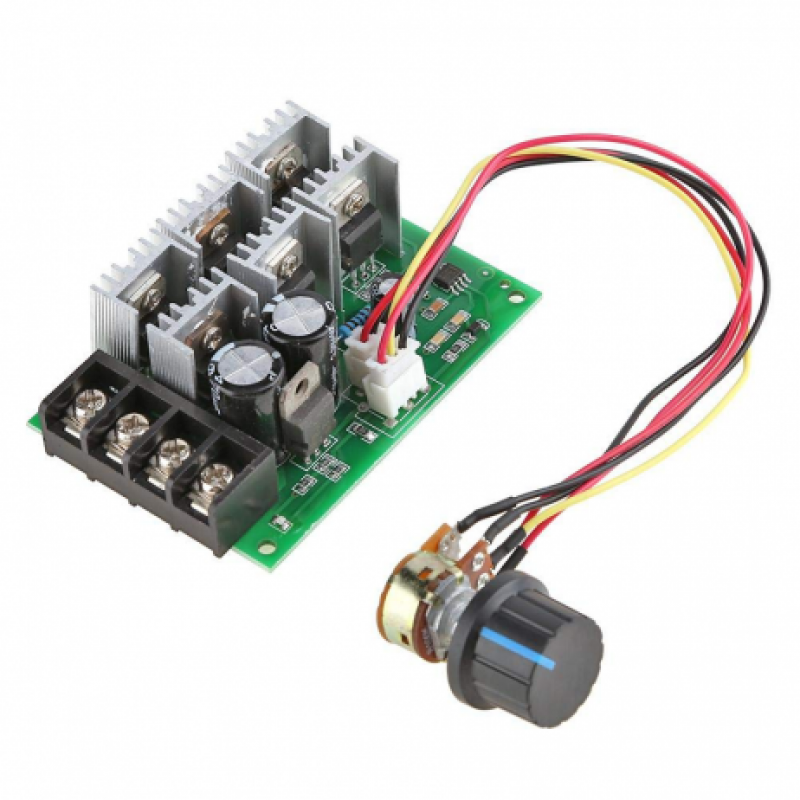

2000W PWM Motor Speed Controller With Potentiometer
- Product Code: EPI1745
- Availability: Out Of Stock
-
Rs.349.00
- (Excluding 18% GST)
OR
This 2000W PWM Motor Speed Controller With Potentiometer is used to control the speed of a DC motor through PWM. This controller is based on high-quality MOSFETs which has its individual heat sinks. The controller has a high-quality potentiometer to control the speed of the motor. The module can provide maximum power up-to 2000W , which is enough to control all DC motors.
Features:
- Maximum Power: 2000W
- The speed of the DC motor can be controlled by adjusting the pulse width modulation (PWM).
- The knob realizes 0-100% adjustment, supports step-less speed regulation and facilitates positioning speed.
- Operating voltage range: 9 55 VDC
Package Includes:
1 x 2000W PWM Motor Speed Controller With Potentiometer
Specifications:
| Operating Voltage (VDC) | 9 ~ 55 |
| Max. Operating Current (mA) | 40 A |
| Maximum Power | 2000 W |
| Speed Regulation | Potentiometer (linear) |
| Speed Range | 0-100% |
| Control Frequency | 25KHZ |
| Length (mm) | 80 |
| Width (mm) | 57 |
| Height (mm) | 25 |
| Weight (gm) | 92 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 411.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
