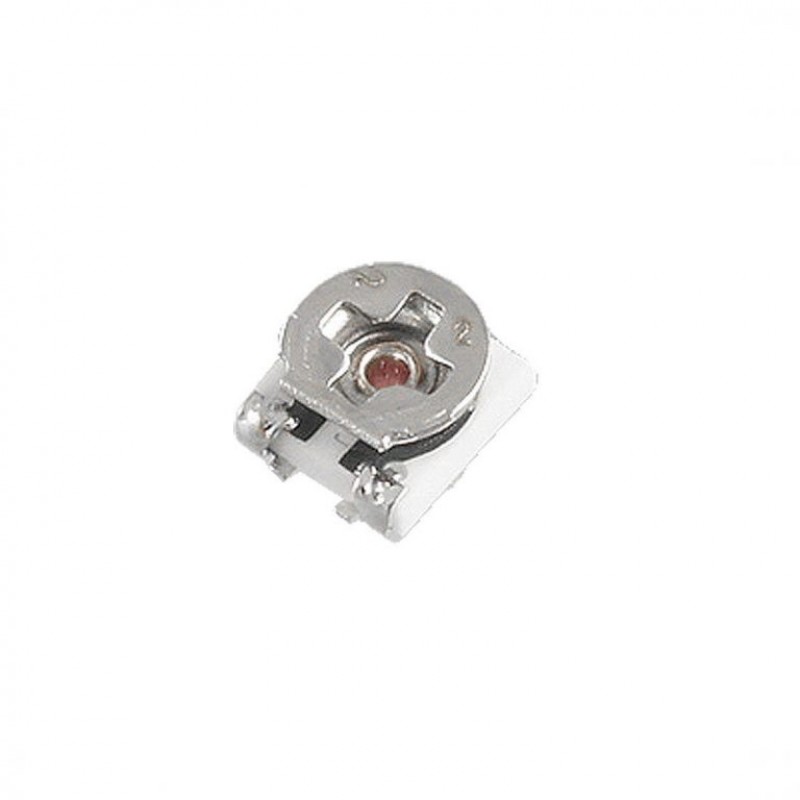

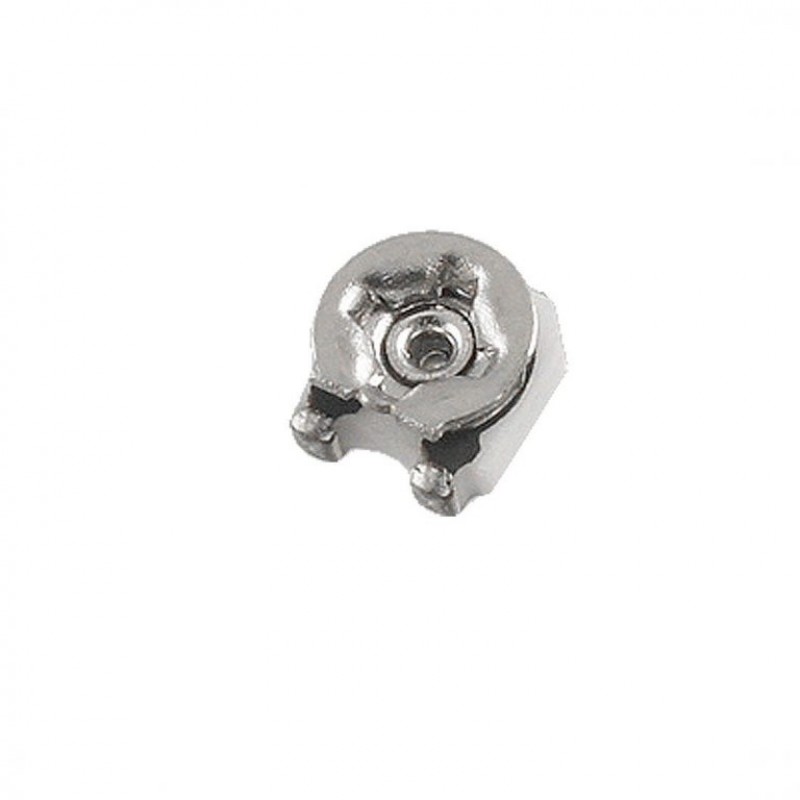

100k Ohm SMD Single Turn Potentiometer Trimmer Variable Resistance
- Product Code: EPI653
- Availability: 266
-
Rs.12.00
- (Excluding 18% GST)
OR
It is 100k Ohm SMD Single Turn Potentiometer Trimmer Variable Resistance. This is used where a resolution of one turn is sufficient, for calibration and tuning applications.
Package Includes:
1 x100k Ohm SMD Single Turn Potentiometer Trimmer Variable Resistance.
Additional information
| Resistance () | 100k |
| Tolerance(%) | 20 |
| Temperature Co-efficient | 150ppm/ |
| Operating Temperature Range (C) | -55 to 125 |
| Mounting Type | SMD/SMT |
| Mechanical Angle | 250 (nominal) |
| Length (mm) | 3 |
| Width (mm) | 3 |
| Height (mm) | 1.9 |
| Weight (gm) | 0.1 (approx) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 14.16 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
