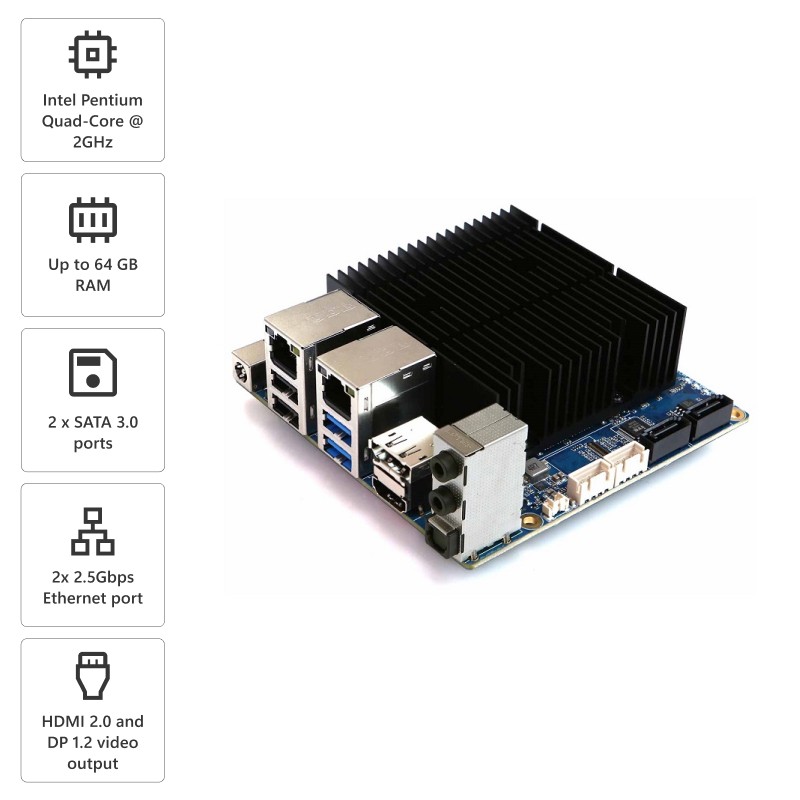

ODROID-H3+ Single Board Computer

The ODROID-H3+ single-board computer is based on the quad-core Intel Pentium Jasper Lake N6005 processor clocked at 2 GHz (up to 3.3 GHz in boost mode) with 1.5 MB L2 cache and 4 MB L3 cache, created in 10 nm technology. It features two slots for DDR4-PC4-23400 SO-DIMM RAM and supports up to 64 GB memory capacity, making the ODROID-H3+ ideal for high-performance computing tasks. The board also includes a PCIe 3.0 x4 slot for an M.2 NVMe drive, dual 2.5Gbps Ethernet ports, SEE4.2 accelerator, HDMI 2.0 port, DisplayPort, and RTC/BIOS battery slot. In addition, the ODROID-H3+ is equipped with Intel UHD Graphics 23 EUs Turbo 900 MHz, providing robust multimedia and graphics performance.

Board Details:

• A. CPU (Intel Pentium Silver N6005)
• B. 2 x DDR4 SO-DIMM slots (Dual channel memory support)
• C. 1 x M.2 PCI Express Module Socket (NGFF-2280)
• D. 1 x eMMC (Embedded Multimedia-Card) Socket
• E. 2 x SATA Power Connectors (2.5mm pitch,JST-XHcompatible connector)
• F. 2 x SATA3 6.0 Gb/s Data Connectors
• G. 1 x DC Power Jack
• H. 2 x USB 3.0
• I. 2 x USB 2.0
• J. 1 x HDMI 2.0
• K. 1 x DisplayPort 1.2
• L. 2 x RJ45 Ethernet Ports (10/100/1000/2500)
• M. 5 x System LED Indicators
• N. 1 x Peripheral Expansion Header (24-pin)
• O. 1 x Power Switch
• P. 1 x Reset Switch
• Q. 1 x Backup Battery Connector (2-pin)
• R. 1 x Active Cooling Fan Connector (4-pin)
• S. 1 x Audio out, 1 x Audio in, 1 x SPDIF out

How to run the Odroid H3 minicomputer?

• Connect the included RTC / BIOS backup battery to the 2-pin connector, which maintains the BIOS settings and performs the RTC function.
• Install DDR4 RAM sticks up to 32GB per slot and up to 64GB total (not included).
• Connect additional peripherals such as a monitor, keyboard, and mouse. Odroid H3 does not support devices with PS2 port. Only USB orBluetoothdevices are supported.
• The display can be connected via USB or DisplayPort.
• In order to communicate with the Internet, a patch cord must be connected to the Ethernet port (10 / 100 / 1000 / 2500 Mb/s)
• Connect the 15V/4Apower adapterto the 5.5/2.1mm DC jack port.

Features:

1. Intel Pentium Quad-Core Jasper Lake N6005 @ 2GHz, up to 3.3GHz boost
2. Up to 64 GB RAM, dual-channel DDR-PC4-23400 (2933 MT/s)
3. Two SO-DIMM slots, up to 32GB per slot
4. 2x 2.5Gbps Ethernet port
5. 2 x SATA 3.0 ports
6. SSE4.2 Accelerator (SMM, FPU, NX, NMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, AES)
7. Intel UHD Graphics 24 EUs Turbo 900MHz
8. HDMI 2.0 and DP 1.2 video output
9. Configurable Unlimited Performance mode allowing the processor to enter turbo boost mode
10. RTC/BIOS backup battery included

Package Includes:

1 x ODROID-H3+ Single Board Computer
