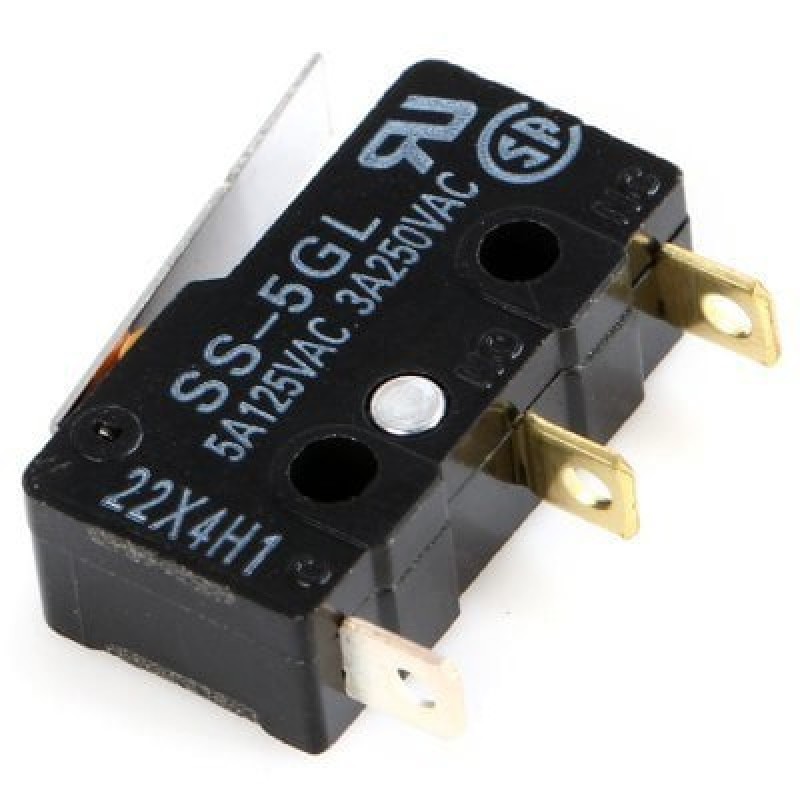

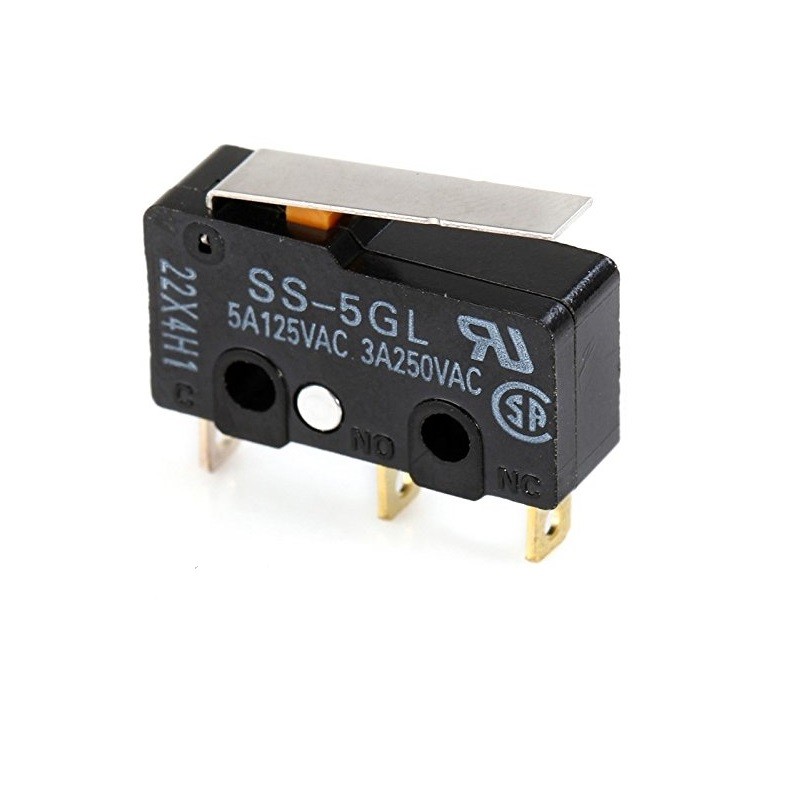

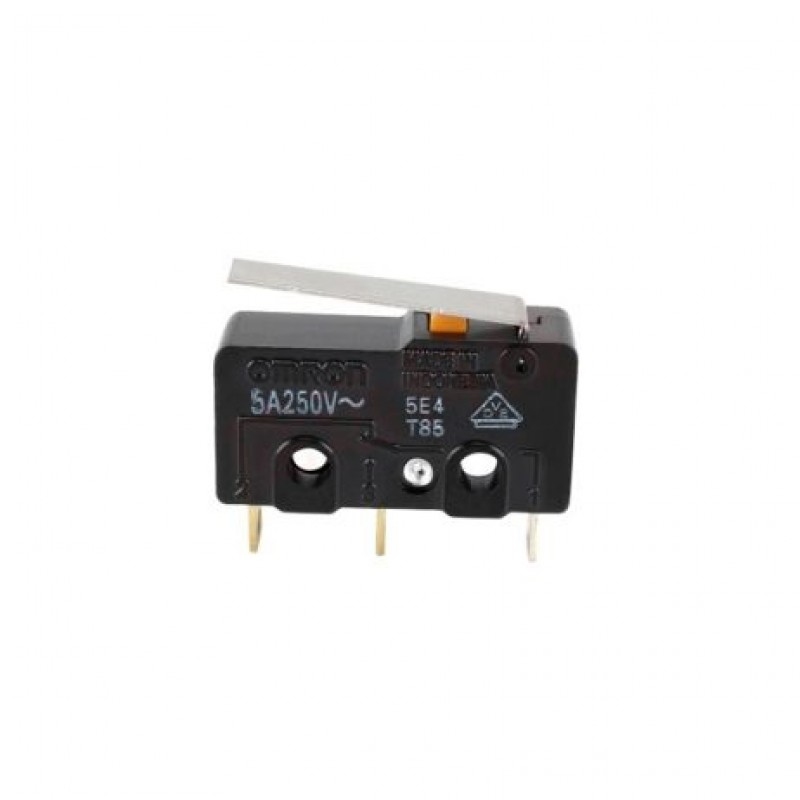

OMRON 3D Printer Limit Switch ENDSTOP SS-5GL

This isOMRON 3D Printer Limit Switch ENDSTOP SS-5GL.

The Omron SS series are subminiature basic switches. These switches offer high reliability and security. A variety of models are available with an operating force ranging from low to high.

Applications :

Industrial, Power Management, Automation & Process Control, Security

Features :

1. Switching capacity of 3A at 250VAC, 5A at 125VAC, 0.1A at 30VDC.
2. Pin plunger, hinge, long hinge, simulated roller, hinge roller lever actuators available.
3. Solder, quick connect, PCB terminals available.
4. SPDT, SPST-NC, SPST-NO contact configuration.
5. Two split springs ensure high stability and durability.
6. Economical, subminiature snap action switch offers long service life (30 million operations minimum)
7. All models are free from overtravel restrictions, permit easy setting
8. Wide switching capacity range from micro voltage/current loads (1 mA at 5 VDC to high-capacity loads 10.1 A at 250VAC)
9. Standard operating force, low force or super-low force models available
10. RoHS Compliant

Package Includes :

1 x3D Printer Limit Switch ENDSTOP OMRON SS-5GL
