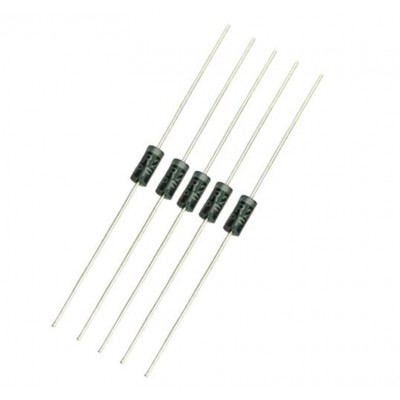

RL207 Diode - 5 Pieces Pack

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

The RL207 is a Silicon Rectifier has a voltage range of 50 to 1000 Volts and Current of 2.0 Amperes. The following are the features of RL207:

• Low Reverse Current

• Low Forward Voltage Drop

• High Current Capability

• Plastic Material - U/L Flammability Classification 94V-0

Mechanical Characteristics:-

• Case: DO-15, Molded Plastic

• Leads: Solderable per MIL-STD-202, Method 208

• Polarity: Color Band Denotes Cathode

• Approx Weight: 0.4 grams

• Mounting Position: Any

Specification:-

Symbol	Parameter	Value	Units
VRRM	Peak Repetitive Reverse Voltage	1000	V
VRWM	Working Peak Reverse Voltage	700	V
VR	DC Blocking Voltage	1000	V
IFSM	Non-Repetitive Peak Forward Surge Current	70	A
TJ	Operating Junction Temperature Range	− 65 to +150	°C
Tstg	Storage Temperature Range	− 65 to +150	°C
IF(AV)	Maximum Average Forward Rectified Current	2	A
CJ	Typical Junction Capacitance	40	pF

Related Document:-

RL207 Diode Data Sheet


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP	Rs. 18.29 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.
