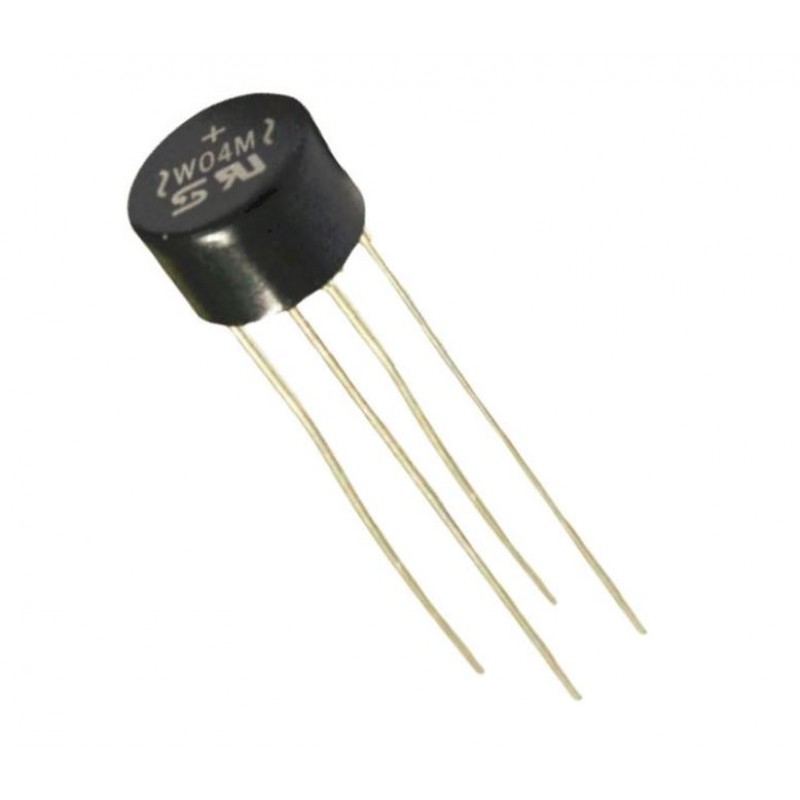

W04M 1A 400V Full Wave Bridge Rectifier

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

The W04 Rectifier is a Single Phase Glass Passivated Silicon Bridge Rectifier of a voltage range 50 to 400 Volts and Current 1 Amperes.

Features:-

• High reverse voltage to 400V

• Surge overload ratings to 50 amperes peak

• Good for printed circuit board assembly

Mechanical Data:-

• UL listed the recognized component directory, file E94233

• Epoxy: Device has UL flammability classification 94V-O

• Mounting position: Any

• Weight: 1.20 grams

Specification:-

Symbol	Parameter	Values	Units
VRRM	Maximum Recurrent Peak Reverse Voltage	50	V
VRMS	Maximum RMS Bridge Input Voltage	35	V
VDC	Maximum DC Blocking Voltage	50	V
IO	Maximum Average Forward Rectified Output Current at TA = 25°C	1.5	A
TJ	Operating Temperature Range	55 to + 150	°C
TSTG	Storage Temperature Range	55 to + 150	°C

Related Document:-

WO4 Rectifier Data Sheet


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP	Rs. 10.62 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.
